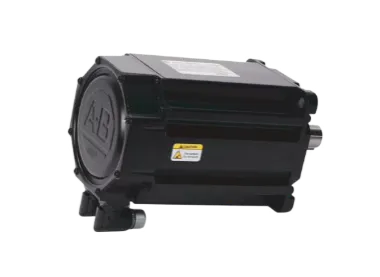

The Allen-Bradley MPL-B560F-MJ74AA is a high-performance, low-inertia brushless servo motor from Rockwell Automation’s MP-Series™. Engineered for precision motion control, it is well-suited for applications in packaging, material handling, and general automation.
Key Specifications
Voltage Class: 460 V AC
Power Output: 5.5 kW
Rated Speed: 3000 RPM
Continuous Stall Torque: 26.8 Nm
Peak Stall Torque: 67.8 Nm
Frame Size: 165 mm (Frame 5)
Magnet Stack Length: 152.4 mm (6.0 in.)
Rotor Inertia: 0.00213 kg·m²
Weight: Approximately 20.2 kg (44.5 lbs)
