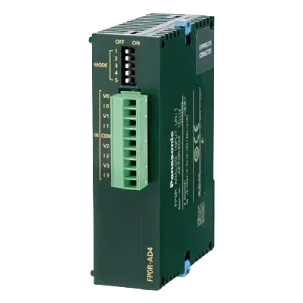

The Panasonic AFP0RAD4 is a 4-channel analog input module designed for the FP0R series of programmable logic controllers (PLCs). It offers high-resolution data acquisition, making it suitable for applications requiring precise analog signal processing.
Key Specifications
Number of Input Channels: 4
Input Ranges:
Voltage: -10 to +10 V, -5 to +5 V, 0 to +10 V, 0 to +5 V
Current: 0 to 20 mA
Resolution: 14-bit (1/16,000)
Conversion Speed: 2 ms for all channels
Input Impedance:
Voltage: Approximately 1 MΩ
Current: Approximately 250 Ω
Absolute Maximum Input:
Voltage: ±15 V
Current: ±30 mA
Accuracy:
Voltage: ±0.2% F.S. or less at 25°C
Current: ±0.3% F.S. or less at 25°C
Operating Temperature: 0 to +55°C
Mounting: DIN Rail
Dimensions: 25 mm (W) × 90 mm (H) × 60 mm (D)
Weight: Approximately 75 g
