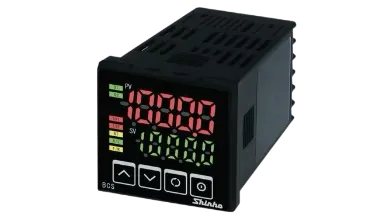

The Shinko BCS2S00-00 is a compact, multi-range digital temperature controller designed for precise process control in industrial applications. Its versatility and user-friendly interface make it suitable for various temperature regulation tasks.
Key Specifications
Model: BCS2S00-00
Power Supply: 100–240 V AC
Control Output: Non-contact voltage (for SSR drive): 12 V DC ±15%
Input Types:
Thermocouples: Types K, J, T, E, N, R, S, B
RTDs: Pt100, JPt100
Analog Inputs: 0–1 V, 0–20 mA, 4–20 mA
Sampling Time: 125 ms
Control Modes: PID, ON/OFF
Display: Dual 4-digit 7-segment LEDs for PV (Process Value) and SV (Set Value)
Mounting Dimensions:
Front Panel Size: 48 x 48 mm (DIN 1/16)
Depth: 60 mm (panel cutout depth)
Protection Rating: IP66 (front panel)
Weight: Approximately 110 g
