System : Muti function Tester, ATE
Outlook : Drawer-type independent Chamber
Test Type : PCB / PCB Module
Test Q’ty : x6, x12, x18 …. (6 multiples)
Tester : IPC Tester
Operation : Windows
Temp. : -40~350℃ (Option)
Chamber : Independent insulation design and built-in temperature sensors.
load/unload : Front Door
Interface : Dedicated slot for rear
connections : Communication RJ45/GPIB
Outside Dimension : 700 x 700 x 230 mm (W x D x H)
Chamber Dimension : 630 x 630 x 160 mm (W x D x H)
PCB / Module Dimension : Max. 600 x 600 x 130 mm (W x D x H)
Test Temp. : -40 ±3 ℃ ~ 350 ±2℃
Temp. Sensor : 2 temperature sensors / chamber
Rack Configuration : x6, x12, x18 …. (or by customize)
Elec. Power : 220~240V、1Փ3W、60Hz、1.1KVA
CDA : Dry air of 5kg/cm² (0.5MPa) or higher
Cooling water : 10℃~ 20℃, 5L/min.
Heat Rejection : Depends on user environment

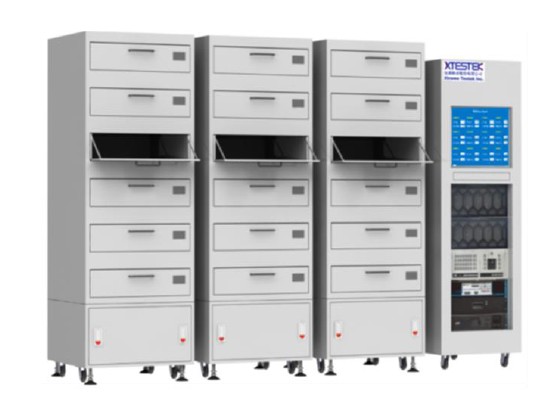

The XTEK-005 Smart Chamber is an advanced environmental testing system designed precise control of temperature and humidity for semiconductor and electronics, and industrial reliability testing. Smart, reliable, and fully automated.
